| Model |
Type 2 (T2) mod. 231(6) : - Kombi - 5 seater (arrangement 2-0-3) - Sliding door right - LHD |
|||

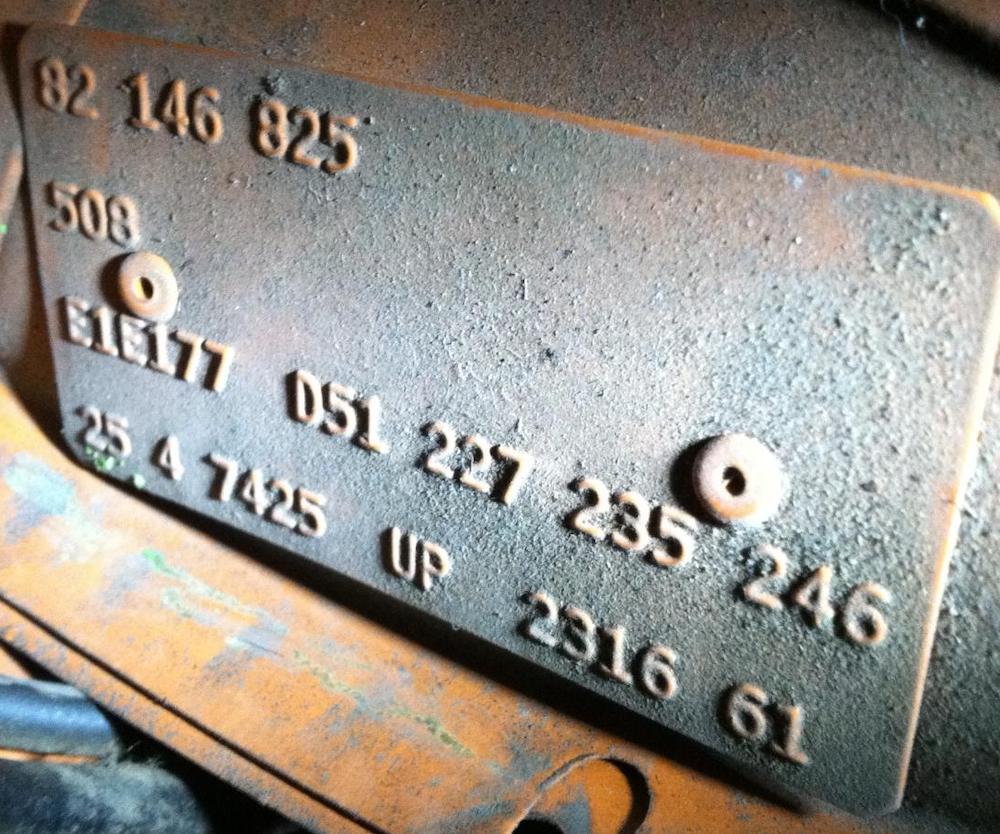

| Chassis number | 2382146825 | |||
| Serial number | 146 825 | |||
| Model year | 1978 | |||
| Planned production date | Thursday, 22 June 1978 | |||
|
Number for production planning (temporary serial number) |
7425 | |||
| Type of engine | Type 4 (GE) - 1970cc, 51 kW (70 bhp DIN) | |||
| Type of transmission | Manual 4-speed gearbox | |||
| Paint color |
|
|||
| Interior color (doorpanels and seats) |
77 - Canyon Brown Leatherette
|
|||
| Destination | USA, Portland | |||
| List of option codes (M-Codes) | 227 235 246 508 D51 |
| M-CODE | Description | Concerned models | From chassis number | To chassis number | ||
|---|---|---|---|---|---|---|
| 227 | Detachable headrests for all seats in cabin (with M161 only) | 2x3 2 000 001 | ||||
| 235 | Seats in passager compartment with mountings for headrest |
221-244 |
2x4 2 000 001 | |||
| 246 | Windshield free from import-duty for USA (with M089 only) | |||||
| 508 | Additionnal vent window in passengers compartment opposite sliding door |
221-244 |
2x1 2 300 000 | |||
| 508 | With vent wing in sliding door and in all windows in the opposite side panel |
221-244 |
2x2 2 000 001 | 2x7 2 300 000 | ||
| 508 | Sliding window in the side panel opposite the sliding door |
271 274 |
2x2 2 000 001 | |||
| 508 | With vent wing in the Double Cab door and in the opposite side panel |
265-268 |
2x2 2 000 001 | |||
| D51 | Collection of M-codes: M 032/047/094/103/121/507/511/513 (1970) | 2x0 2 000 001 | 2x0 2 300 000 | |||
| 032 | Lockable filler cap for fuel tank |
211-274 |
||||
| 047 | Two reversing lights |
211-268 |
2x1 2 300 000 | |||
| 094 | Lockable engine lid | |||||
| 103 | Heavy duty shock absorbers for bad roads |
211-274 |
||||
| 121 | Two electrical ventilators in fresh air system | |||||
| 507 | Vent wings in cab doors |
211-235 261-274 |
||||
| 511 | Padded instrument panel (LHD only) |
211-271 |
||||
| 513 | Protection runner for transmission |
211-274 |
||||
| D51 | Collection of M-codes: M 012/067/102/148/508 (1976) | 2x6 2 000 001 | 2x6 2 300 000 | |||
| 012 | Exhaust emission control installation and speedometer in miles instead of km (with M524 only) | |||||
| 067 | 12V 54 Ah battery instead of 45 Ah | |||||
| 102 | Rear-window defogger |
211-268 |
||||
| 148 | With hinged rear seat backrest (1974-1976) |
221 224 |
2x4 2 000 001 | 2x6 2 300 000 | ||
| 148 | With hinged rear seat backrest (1974-1979) |
231 234 |
2x4 2 000 001 | 2x9 2 300 000 | ||
| 508 | Additionnal vent window in passengers compartment opposite sliding door |
221-244 |
2x1 2 300 000 | |||
| 508 | With vent wing in sliding door and in all windows in the opposite side panel |
221-244 |
2x2 2 000 001 | 2x7 2 300 000 | ||
| 508 | Sliding window in the side panel opposite the sliding door |
271 274 |
2x2 2 000 001 | |||
| 508 | With vent wing in the Double Cab door and in the opposite side panel |
265-268 |
2x2 2 000 001 | |||
| D51 | Collection of M-codes: M 012/067/102/206 (1978) | 2x8 2 000 001 | 2x8 2 300 000 | |||
| 012 | Exhaust emission control installation and speedometer in miles instead of km (with M524 only) | |||||
| 067 | 12V 54 Ah battery instead of 45 Ah | |||||
| 102 | Rear-window defogger |
211-268 |
||||
| 206 | Inner rear-view mirror, anti-dazzle | |||||
